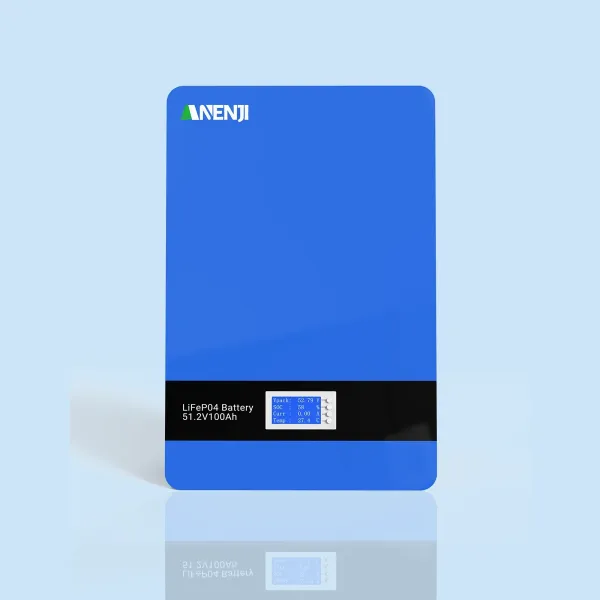

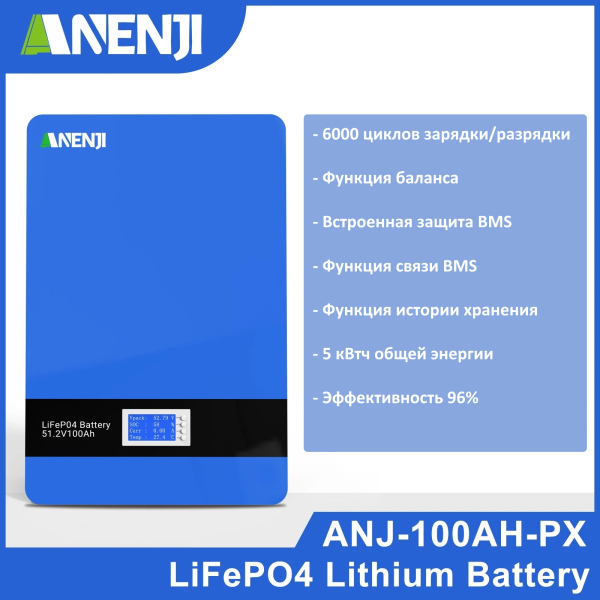

ANENJI 51.2V 100AH LiFePO4 wall-mounted battery



Do you also need an inverter? Click here:

ANENJI ANJ-6200W-48V-WIFI Inverter (UPS)

ANENJI 11KW 48V WiFi Inverter (UPS)



It can store a large amount of energy while taking up relatively little space. Thanks to the chemistry of LiFePO4, it provides a longer service life and more charging cycles. The wall-mounted design saves space on the floor and is easy to install, making it ideal for home use. It can charge quickly and provide stable discharge power. LiFePO4 batteries have better thermal and chemical stability, which reduces the risk of fire or explosion. They are more reliable, efficient and safe.

The home energy storage device includes a battery module, a BMS module, and an output interface. It can store and release energy according to the requirements of the AC/DC inverter. Capacity expansion is supported due to the modular structure. The excess energy from the solar panels is stored in the battery, and when there is a shortage of energy, it is used to power the load.

Product Features

Flexible configuration, easy installation
The modular design allows you to scale the system freely.

High level of protection
Protection class IP65 — suitable for outdoor use.

Seamless mode switching
Intelligent switching between network, offline and emergency modes.

Convenient management platform
The ability to log in from a PC for real-time monitoring.

Basic parameters

Cell type: LFP 3.2V / 100Ah

Configuration: 16S1P

Rated capacity: 100Ah

Rated voltage: 51.2V

Operating voltage: 43.2–58.4V

Total capacity: 5.12 kWh

Operating current: 50A

Max. current: 100A

Life cycle: 6000 cycles

Temperature: Discharge from 0℃ to 55℃, charge from -10℃ to 55℃

Weight: 46 ± 3 kg

Installation

Check the scope of delivery, damage, and accessories.

Determine the installation height and drill holes.

Install the wall mount and hang the battery.

Defining interfaces

Positive and negative battery terminals

Reset button

Dip address switch

Dry contacts

RS232, RS485, CAN interfaces

Status and error indicator lights

Power switch

LED status indication

The indicators display the current status: normal mode, charging, discharging, errors, overheating protection, etc.
